About Unijig.


Unijig Ltd was founded in 1976 by Barry Dewhirst following a career in Engineering at Lucas Aerospace Ltd.

The Unijig Story

OUR STORY

Unijig Ltd is a business with 40 years’ experience dedicated to providing a first class CNC Machining service focussed on the needs of customers and potential customers across the UK. This is achieved with a team of highly skilled engineers, many home grown through our apprentice training scheme started in the mid-eighties, and producing precision components to the highest quality standard expected by our customers.

The capabilities and CNC Milling and Boring capacity at Unijig grew rapidly in the 1980’s as the customer supplier relationship became embedded. With repeat and new business. It became clear from this relationship that the future for Unijig was to provide a service that customers could rely on with a quality product, reliable delivery service, all at a competitive price.

CNC Machining Quality Service

QUALITY SERVICE

Unijig offers CNC Machining capacity of the highest standard and versatility due to continued investment in Modern CNC Milling and CNC Boring Machines, along with supporting computerised technology. This has enabled an efficient service from quotations, with realistic lead times, to final delivery. From linking customer’s designs to the actual machining of components to final inspection, using CNC Coordinate Measuring Machines in a dedicated environment.

Unijig will, if required, purchase materials and standard parts to be machined to customer’s drawings or will machine from customer supplied free issue materials. Production Control Techniques monitor customer’s components during manufacture, with Status Reports available indicating continuing progress to completion and final delivery. For over 30 years Unijig has been a fully accredited by BSI to ISO: 9002 (formally BS5750 Part 2).

CNC Machining Technology

THE FUTURE

To maintain continuity of the family business in 2005 Gavin and Andre Dewhirst, who had worked at the company for some years, took over ownership and control of Unijig. They have been responsible for the continuation of its success with the day to day management of the company, and the continued investment in new CNC machinery to meet current customer’s needs.

They would say “we are Owner Managers that listen to what the customer wants and are not afraid to invest in CNC Machinery and ancillary equipment accordingly”. Listening to customer feedback has helped Unijig model the business on customer needs, from competitive pricing, efficient production, high quality standards and a focus on the importance of lead times. All amounting to a value for money service.

Inspection & Quality


Unijig recognises that customers expect their components to be manufactured to their exact drawing specification and standards, free from errors, and conforming to their drawing and dimensional tolerances. In 1986 Unijig was accredited with what is now BSI ISO 9002 Quality Standard to formalise control of the manufacturing facility and assist in meeting customer’s high quality expectations.

To enable Unijig to give customers confidence in continuity in inspection accuracy, the company invests in high quality measuring equipment, including CNC Coordinate Measuring Machine, with Renishaw Scanning Probe and capacity up to 1600 x 905 x 605 mm all housed in its own enclosure.

Unijig has over the years developed systems for maintaining desired dimensional standards in the customer’s components by carrying out 1st off, intermediate and final inspection before despatch to the customer.

Sub Contract Inspection Service

In addition to ‘in house’ manufactured component inspection, Unijig offers a flexible sub contract service to carry out inspection for customers. Using the CNC Co-ordinate Measuring Machine, calibrated traceable to National Standards, we can offer a service inspecting components up to 1600 x 905 x 605. Other inspection services include:-

  • SAMPLE INSPECTION WITH DIMENSIONAL REPORT
  • DIMENSIONAL MEASUREMENT OF MODELS
  • INSPECTION FROM COMPUTER AIDED DESIGN DATA
  • SCANNING OF CAM FORMS
  • FIRST OFF INSPECTION
  • BATCH INSPECTION

CNC Coordinate Measuring Machine

CNC Specifications

Sectors


We’ve been servicing clients across a wide range of industries for over 30 years

Mould & Die-Toolmaking

MOULD & DIE-TOOLMAKING

Unijig has worked within this sector for over 30 years with experience supplying customer’s manufactured 3D forms, gun drilling cores and fully supplying steelwork for bolsters back plates, risers ejections.

Oil & Gas-Energy

OIL & GAS-ENERGY

A recent service over the last 10 years is the precision matching of pump Casing in complete materials such as Cast Stainless grade Super Duplex, Gun drilling and large surface grinding of gasket faces.

Automotive

AUTOMOTIVE

Manufacture of 1 off to large volumes complex parts, supplying materials and CNC Machining, Heat Treatment and surface finish plating processes to customer’s specific drawing requirements.

Pharmaceutical

PHARMACEUTICAL

Unijig, over many years has demonstrated it has the precision CNC machines and skills capable of producing multiple parts to precision tolerances within the pharmaceutical sector.

Aerospace

AEROSPACE

Over the last 20 years Unijig has experience manufacturing jigs tooling and other components for BAE systems.

Automtion-Purpose Built Machinery

AUTOMATION-PURPOSE BUILT MACHINERY

Unijig has maintained a specialised service within this sector machining complex machinery parts to customer’s drawings working to precision tolerances.

Plant Capacity


The below is a list of our current plant capacity. All measurements are shown in mm.

 XYZ
depomill high speed milling
5 axis gantry machining centre up to 12000kgs
23001200800
hurco DCX22I-50T22001700750
hurco vmx64ti1625863762
hurco vm20i1000500500
dah lih 2100 vertical machining centre
Nikken 4 axis
2100900900
correa universal bed mills
3 machines
25001000900
vertical machining centres
6 machines including Cincinnati Hass and Dah Lih Jomford
1350650600
horizontal machining centre
500mm twin pallet
813660660
horizontal bed mill25001500600

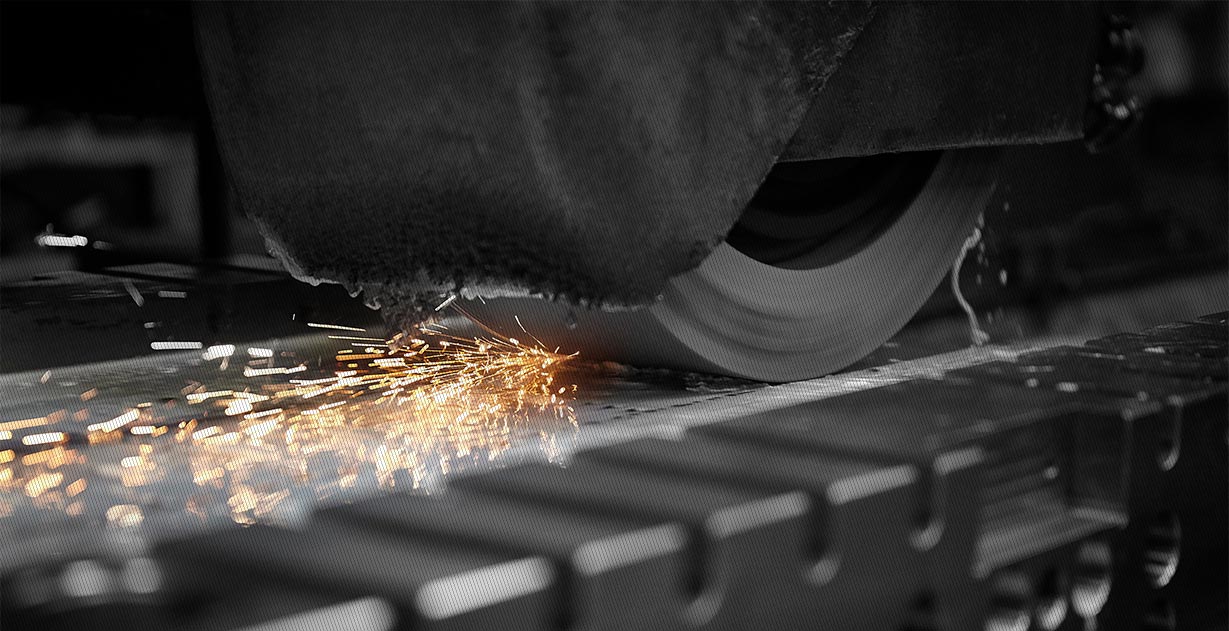

large surface grinding
Precision surface grinding
2000800400
Gun Drilling6.0 dia to 25 dia holes
AGIE Charmilles Cut 30 P600400330
mitutoyo 9166 measuring machine1600905605
renishaw sp25m scanning probe1600905605
